Gas Pressure Regulating Metering Skid

Features

Integrate various functions such as unloading pressurization, storage tank pressurization, gasification, pressure regulation, metering, odorization, and electrical control of the LNG gas supply station.

Compact structure, small footprint

Supports remote control and can achieve unattended operation

Atmospheric heating and gasification to reduce operating costs

Skid-mounted one-piece, easy to install, short construction period

Easy operation and maintenance

The device is highly mobile and can be reused multiple times and in multiple places.

Safety Performance

Equipped with low temperature liquid phase safety valve, gas phase safety valve and safety relief valve

Equipped with liquid phase cryogenic emergency shut-off valve

Equipped with gas phase overpressure emergency shut-off valve

Equipped with electrostatic grounding, all wiring of field instruments are summarized in the explosion-proof junction box

Equipped with natural gas electric hot water bath heating to ensure normal operation at low temperatures

All pressure, temperature, liquid level, current, and voltage signals are linked to the monitoring system to ensure the safety of the theater.

Introduction to the functions of this case device

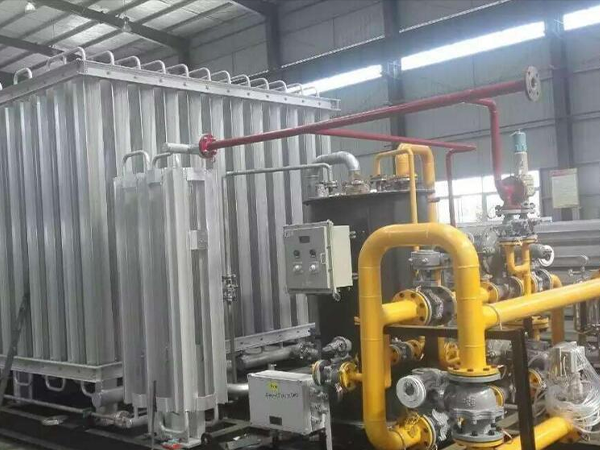

This gasification pressure regulating and odorizing skid is composed of an air-temperature vaporizer, a pressure regulating control part and an odorizing metering part. The air-temperature vaporizer vaporizes liquid LNG into gaseous state, and adjusts the pressure to 0.4Mpa through the pressure regulating group and outputs it to the city gas pipeline network or industrial gas pipeline network.
